MCWlaser Mini Smoke Purifier 80W 200W Filter Fume Extraction System
ZX : Medium filter
GX : Activated carbon filter

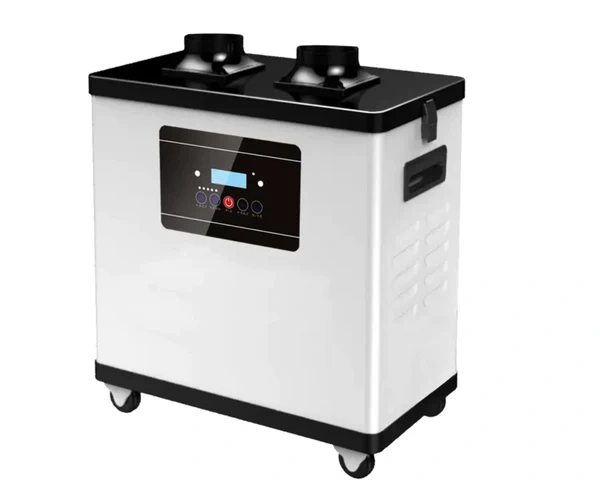

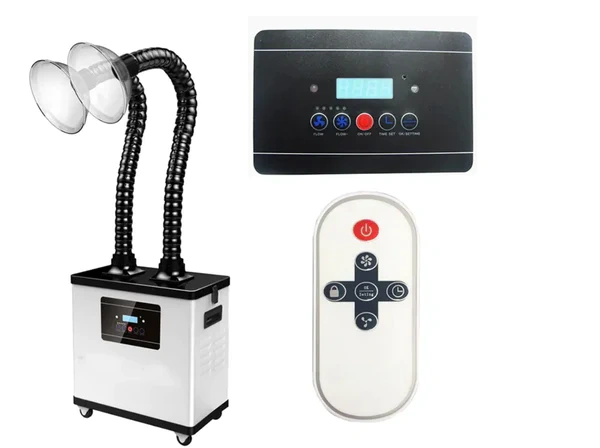

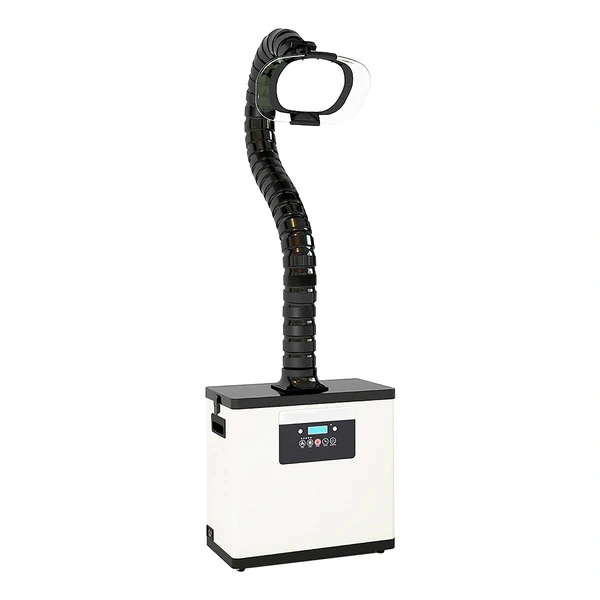

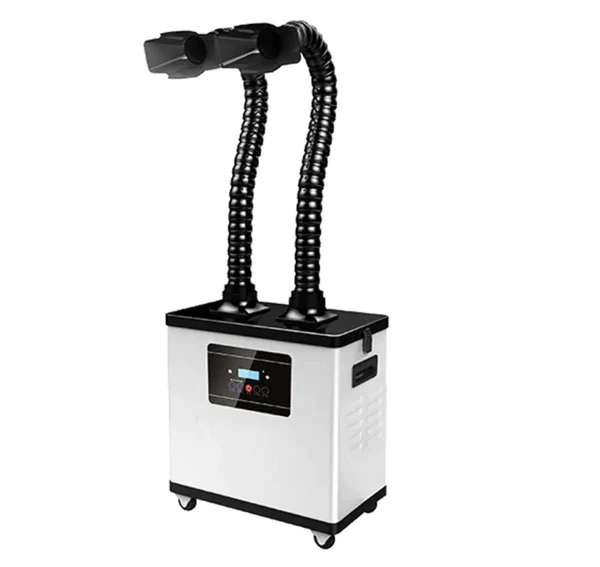

The Mini Smoke Purifier, available in both 80W and 200W variants, is a compact and efficient fume extraction system designed to tackle smoke and airborne contaminants at a smaller scale. Despite its size, this purifier packs a powerful punch, effectively capturing and filtering smoke particles and fumes produced in various applications such as soldering, welding, or similar processes.
The 80W and 200W models offer flexibility to suit different levels of fume extraction needs. Equipped with high-quality filters, this system efficiently removes harmful particulates, ensuring a cleaner and healthier indoor air quality.
Its compact design allows for easy integration into limited-space work environments, providing a practical and reliable solution for minimizing exposure to hazardous fumes and maintaining a safer workspace.

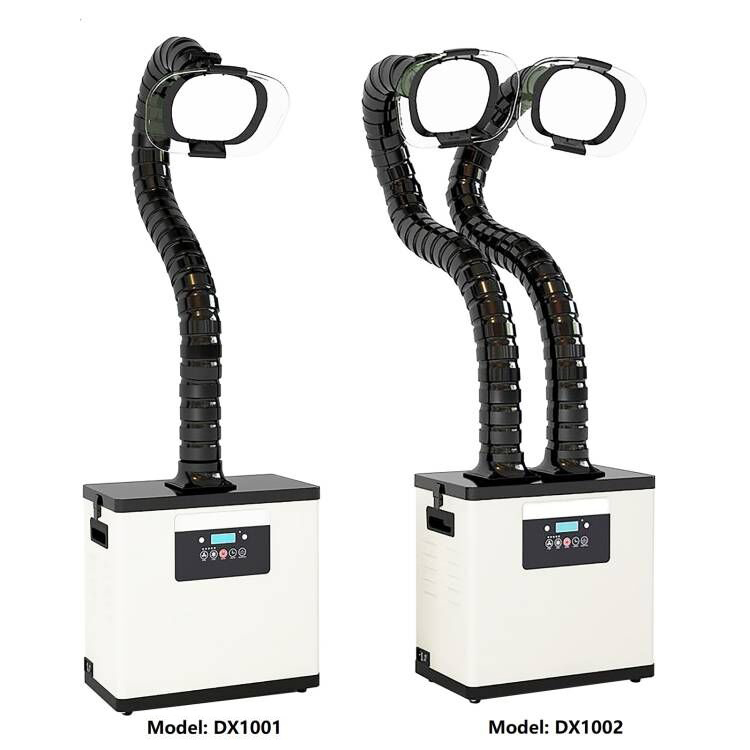

Model |
DX1001 |
DX1002 |
Air inlet interface Flange |
1*Φ75mm |
2*Φ75mm |
Input voltage |
220V |
220V |
Maximum power |
80W |
200W |
Filtering effect |
0.3um(99 .97%) |
0.3um(99.97%) |
Length of smoke absorbing |
1.4m |
1.4m |
Air velocity |
17m/s |
11m/s*2 |
Noise |
<52dB |
<55dB |
Systemic flow |
235m³/h |
150m³/h*2 |
Dimensions of machine body |
420*245*400mm |
420*245*400mm |
Weight |
14KG |
14.5KG |

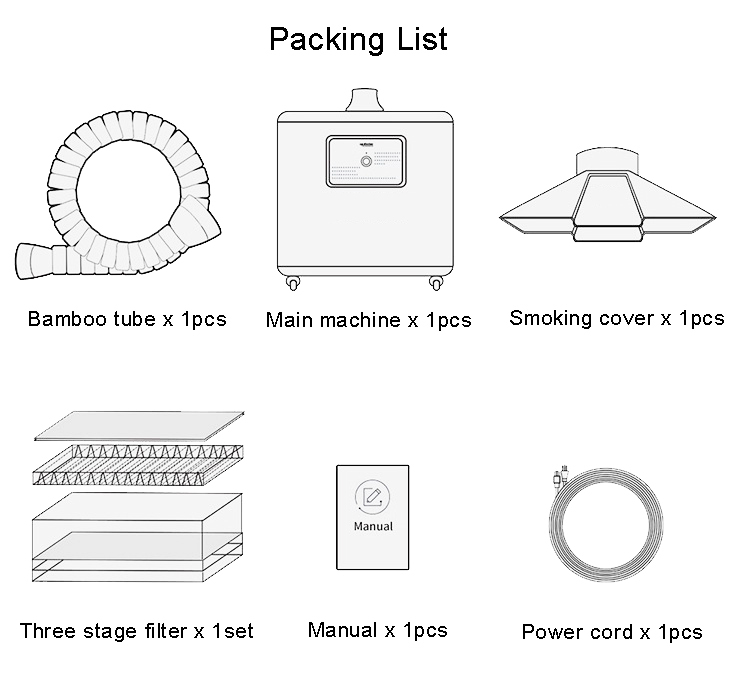

DX-1001/DX-1002 Mini Smoke Purifier*1
Power cord*1
Bamboo tube * 1pcs/2pcs
Smoking cover *1pcs/2pcs

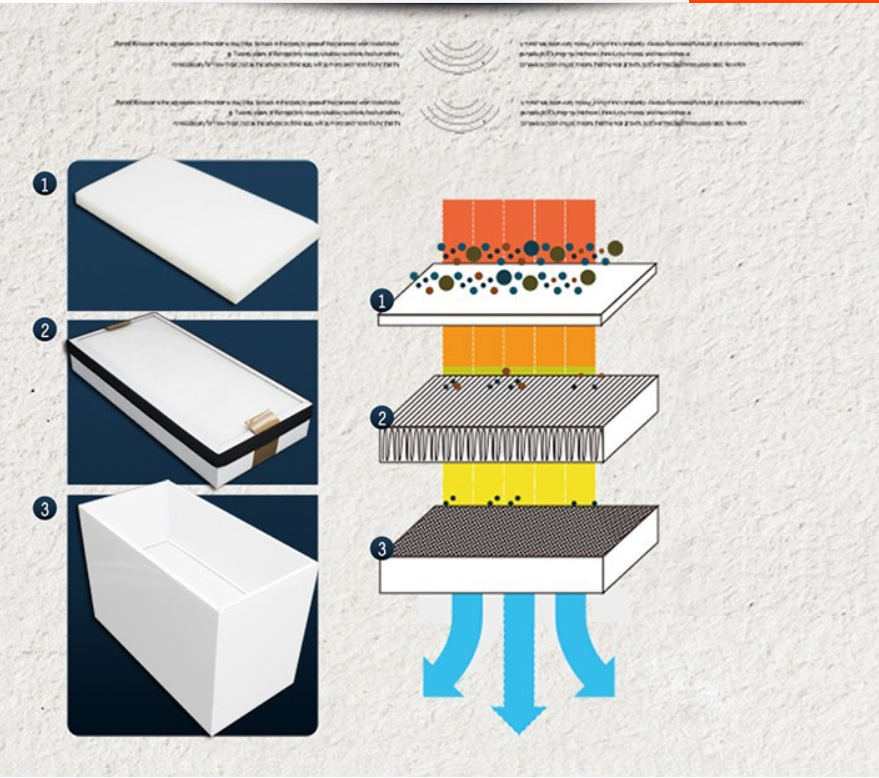

Primary filter * 1
PP Medium Filter * 1
High-efficiency filter * 1
Instructions*1
