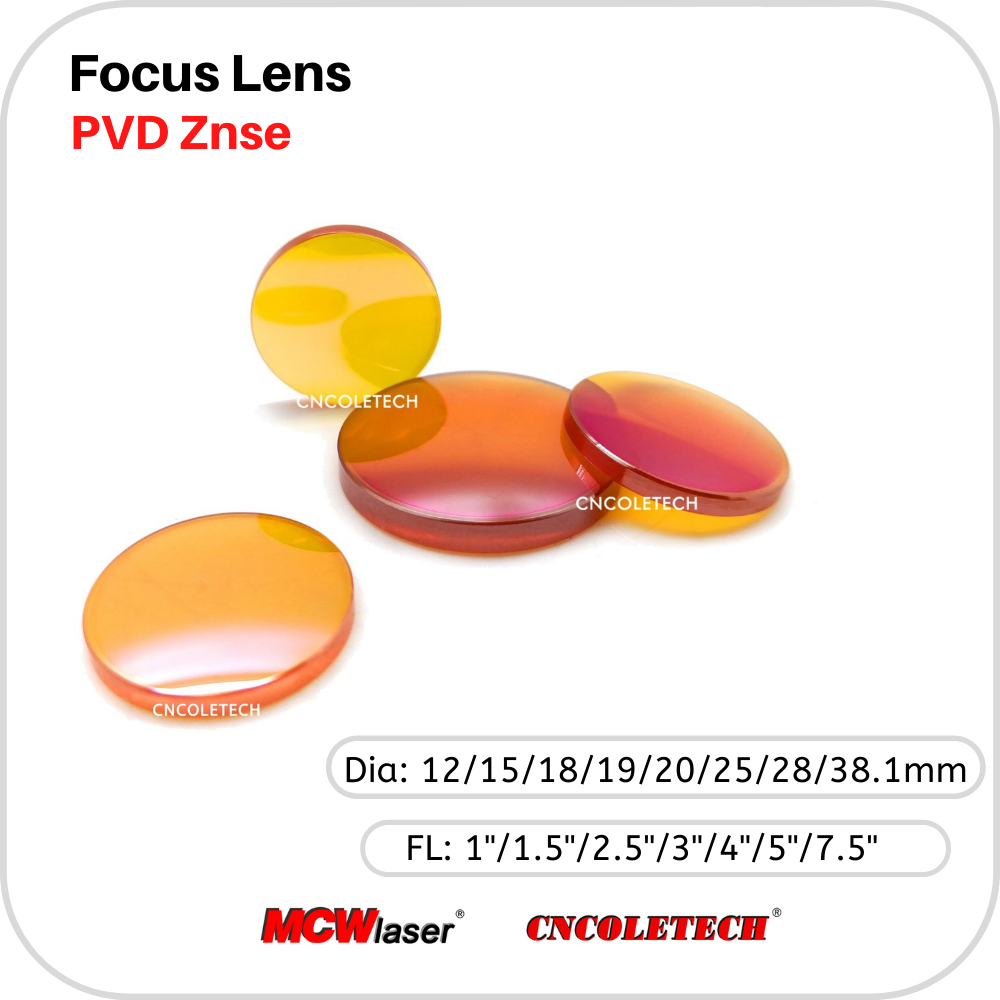

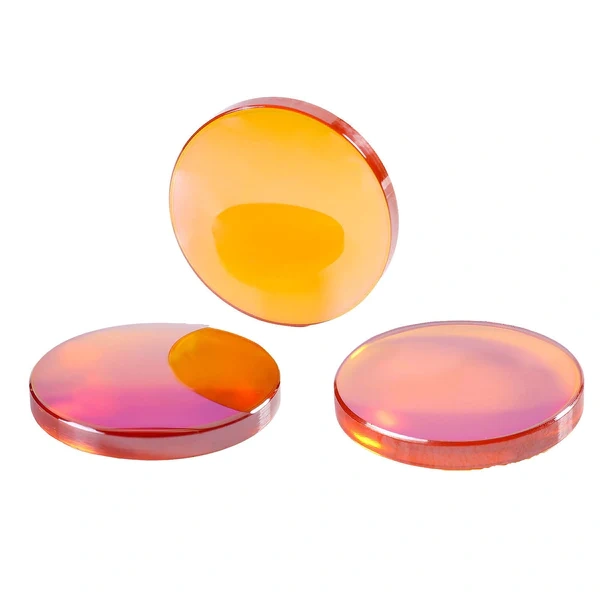

CNCOLETECH Laser Lens PVD Znse Focus Lens Dia 18mm-25mm for CO2 Laser 10600nm 10.6um Laser Engraver

SKU: LM-ZNSE-18254
131 Sold
$0.00 $10.90
GET $5.00 OFF ON ORDERS OVER $100.00
Get it
280XND2A
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Diameter:
    18mm
    19/19.05mm
    20mm
    25mm
  • Focal Length:
    25.4mm/ 1"
    38.1mm/1.5"
    50.8mm/2"
    63.5mm/2.5"
    76.2mm/3"
    101.6mm/4"
    127mm/5"
Quantity:
-
+
Add to Favorites (0)
  • CNCOLETECH Laser Lens PVD Znse Focus Lens Dia 18mm-25mm for CO2 Laser 10600nm 10.6um Laser Engraver
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • CNCOLETECH Laser Lens PVD Znse Focus Lens Dia 18mm-25mm for CO2 Laser 10600nm 10.6um Laser Engraver
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
1/1
  • CNCOLETECH Laser Lens PVD Znse Focus Lens Dia 18mm-25mm for CO2 Laser 10600nm 10.6um Laser Engraver
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • MCWlaser Znse Focus Lens for CO2 Laser 10600nm 10.6um Engraving Cutting Engraver/Cutter
  • Description
  • Payment Method
  • Shipping & Tax
  • FAQ


The MCWlaser Lens for CO2 Laser 10600nm 10.6um - the perfect choice for precision engraving and cutting.

1.Hight quality PVD Znse crystal material
2.Our double-sided solid coating ensures extended durability and wiping resistance, while our precision slicing, polishing, and grinding processes guarantee excellent optical properties and high working efficiency.
3.With high-temperature laser resistance and a laser transmittance of up to 99.8%, our lens is the best option for your laser applications.

Attention:
To avoid lens breakage, follow these tips:
(1) Ensure proper air cooling to prevent overheating and cracking.
(2) Watch out for condensation water drops in the lens barrel, as they may cause breakage.

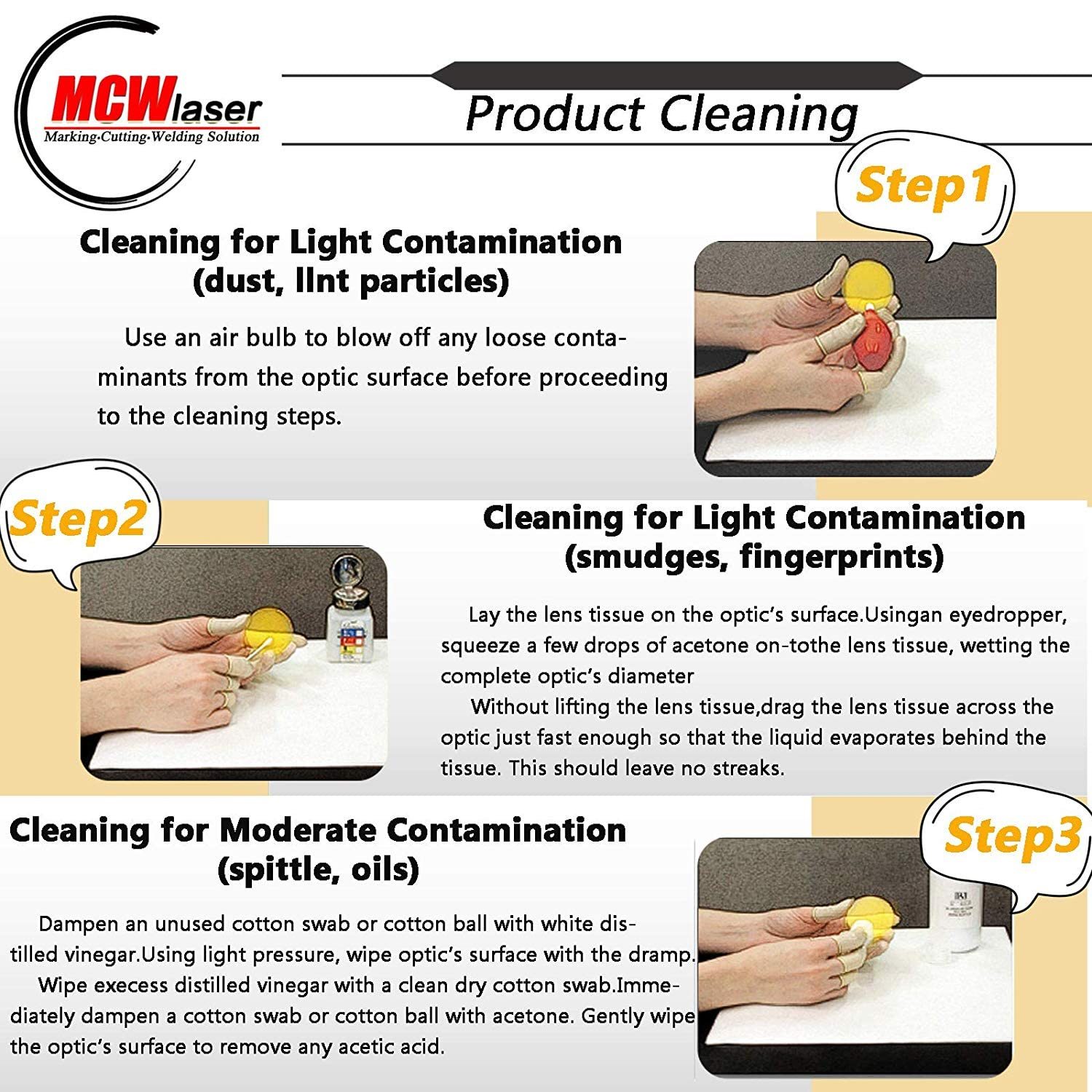

(3) Keep the lens clean and free of debris from the cut or engrave material to avoid uneven heating over time, which may cause breakage. Clean with a cotton ball dipped in absolute alcohol or acetone.

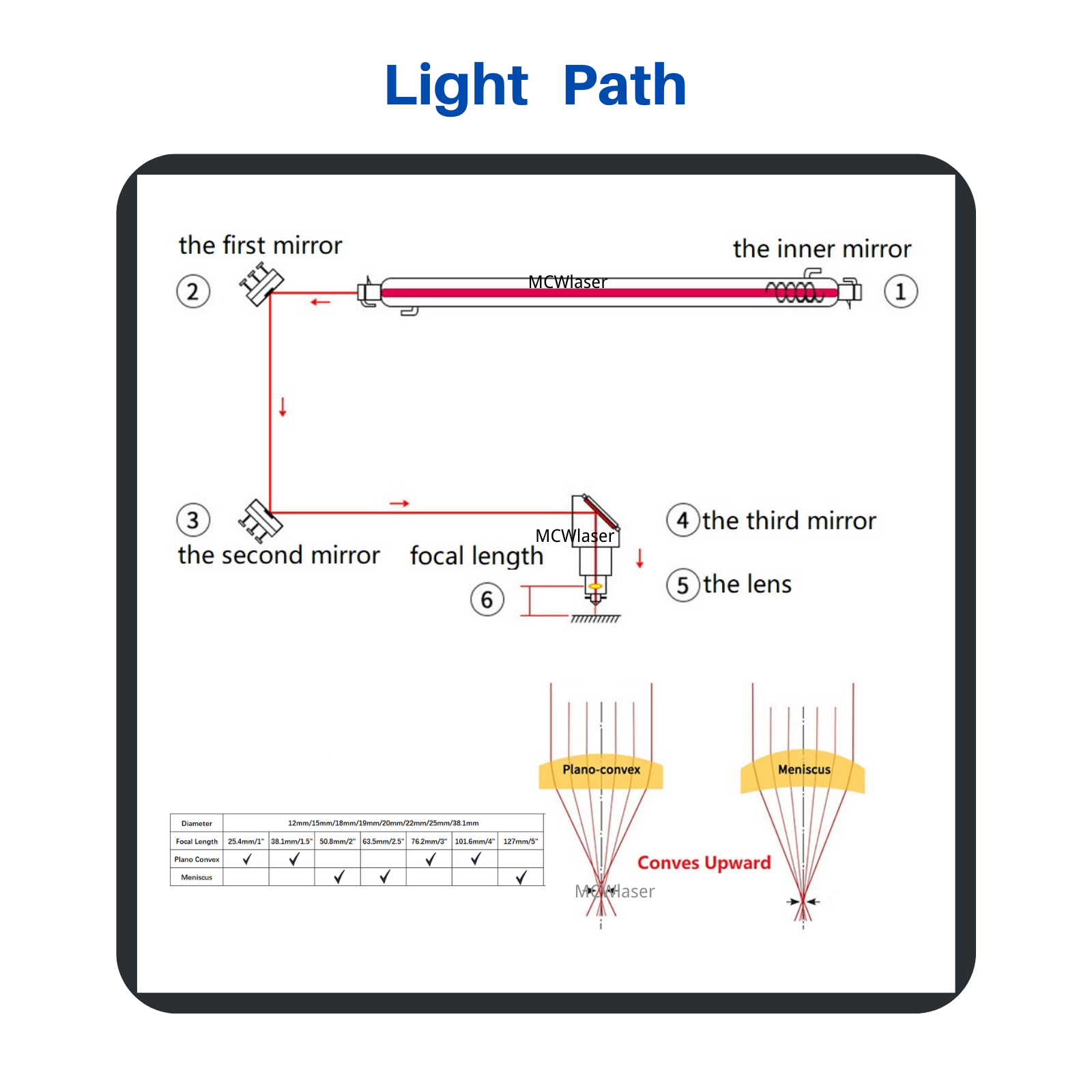

(4) When adjusting the light path, ensure that the laser does not accidentally hit the edge of the lens or the junction of the lens barrel, as this may cause breakage.

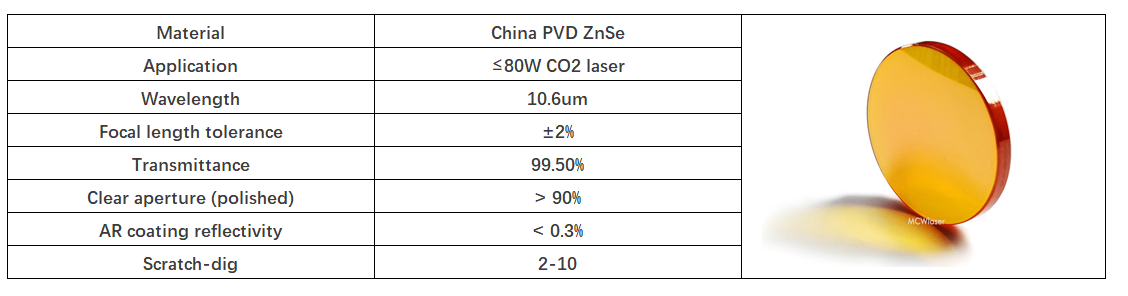

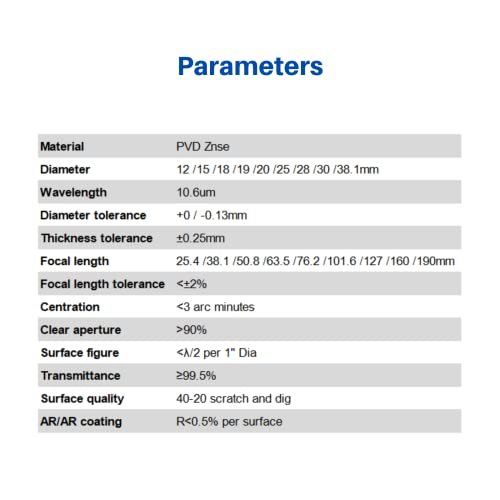

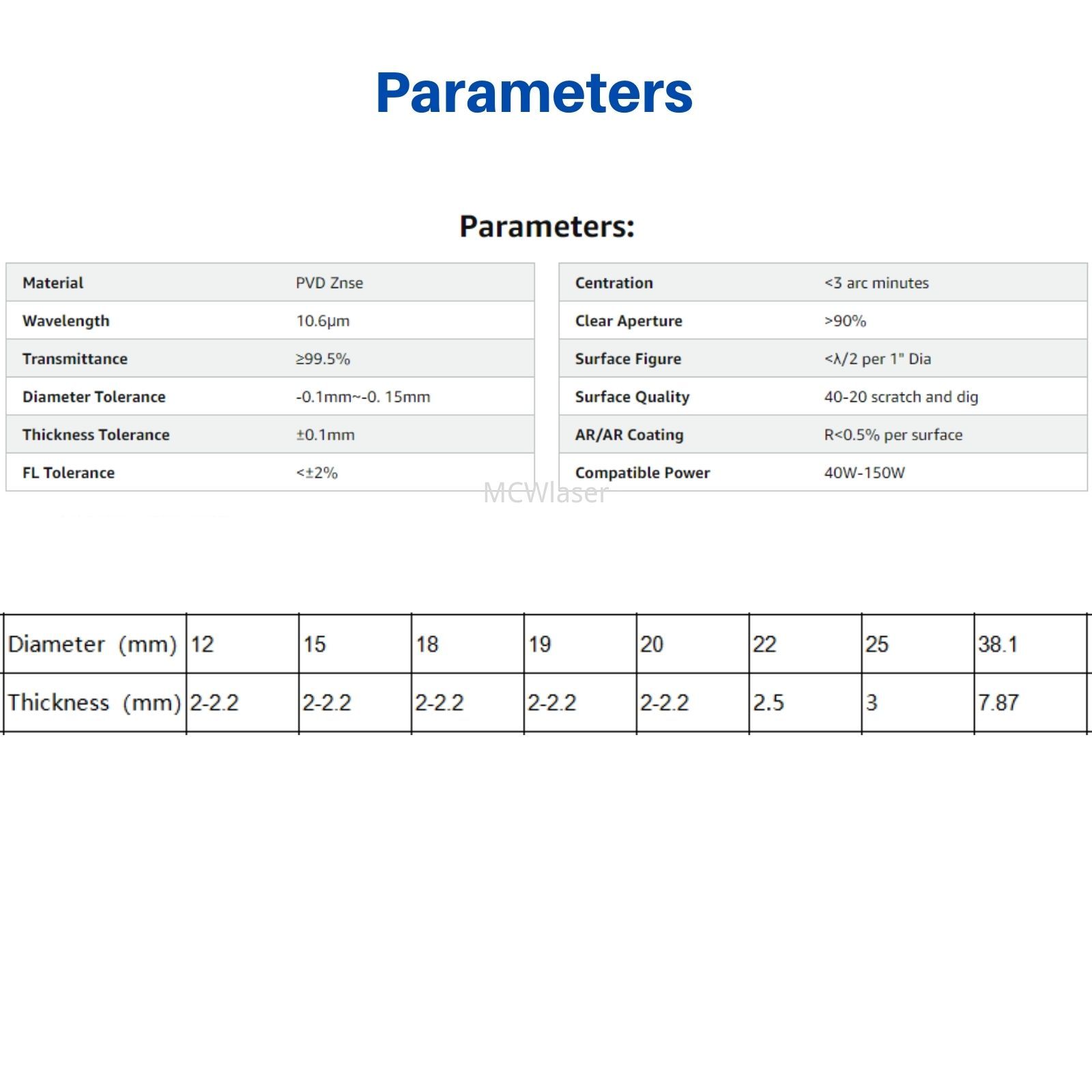

Material PVD Znse   centration <3 arc minutes
Wavelength 10.6um clear Aperture >90%
Transmittance ≥99.5% Surface Figure <λ/2 per 1" Dia
Diameter Tolerance +0/-0.13mm Surface Quality 40-20 scratch and dig
Thickness Tolerance ±0.25mm AR/AR Coating R<0.5% per surface
FLTolerance <±2% Compatible Power 0-300w
Diameter(mm) 18 19/19.05 20 25
Edge Thickness(mm) 2.0-2.2 2.0-2.2 2.0-2.2 3.0
Power(Watt) 0-100W 0-100W 0-100W 0-300W
Note: Thickness Tolerance: ±0.2mm


Tips:

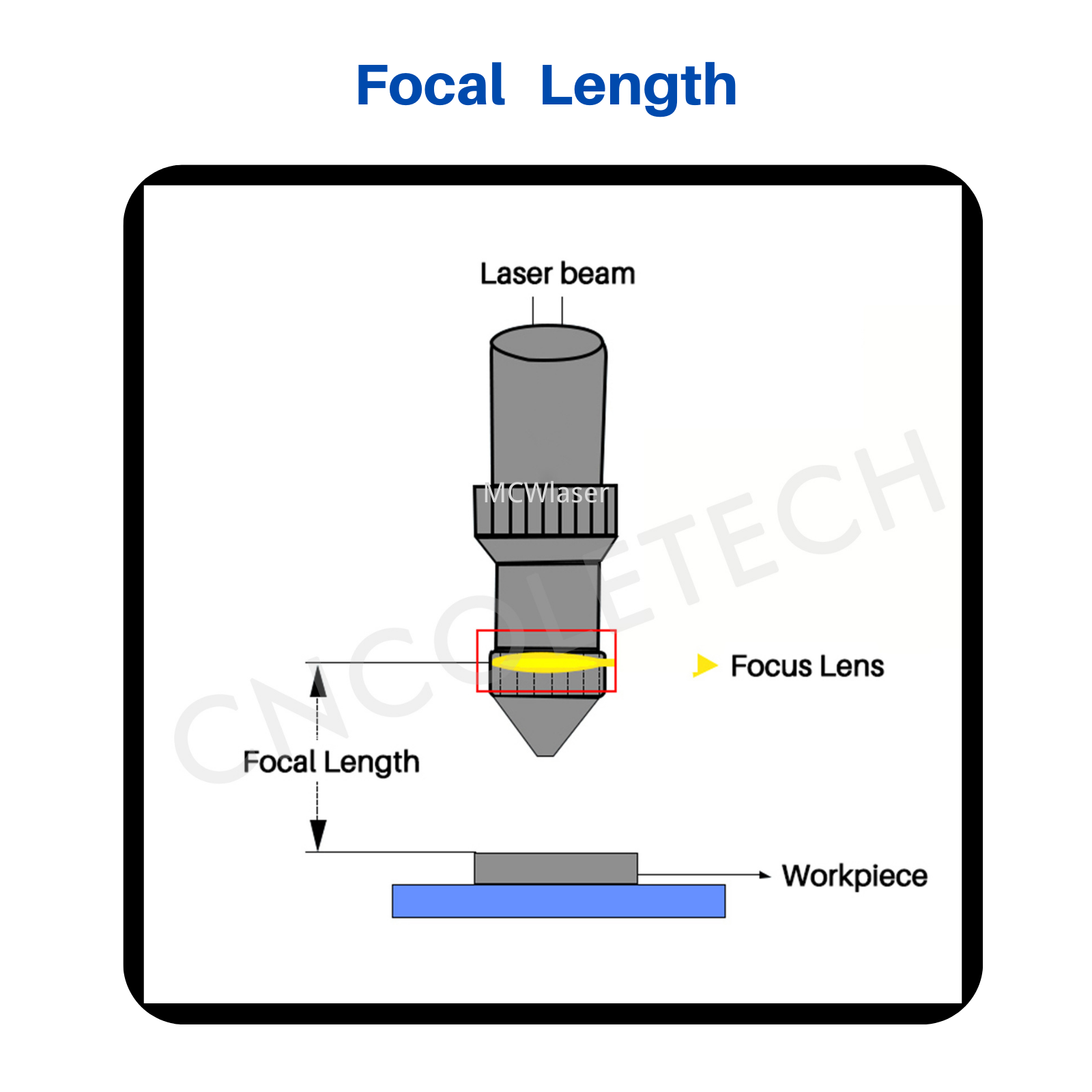

  • Focal length is the distance between the lens and the workpiece(material being cut or engraved). Before replacing or installing the lens, please confirm the diameter and focal length first. You may confirm the focal length of your lens according to the following pic.

    For engraving, we recommend using a laser lens with a focal length of 38.1mm or 50.8mm. If you're planning to cut, we suggest using a laser lens with a focal length of 63.5mm, 76.2mm, 101.6mm, or 127mm.

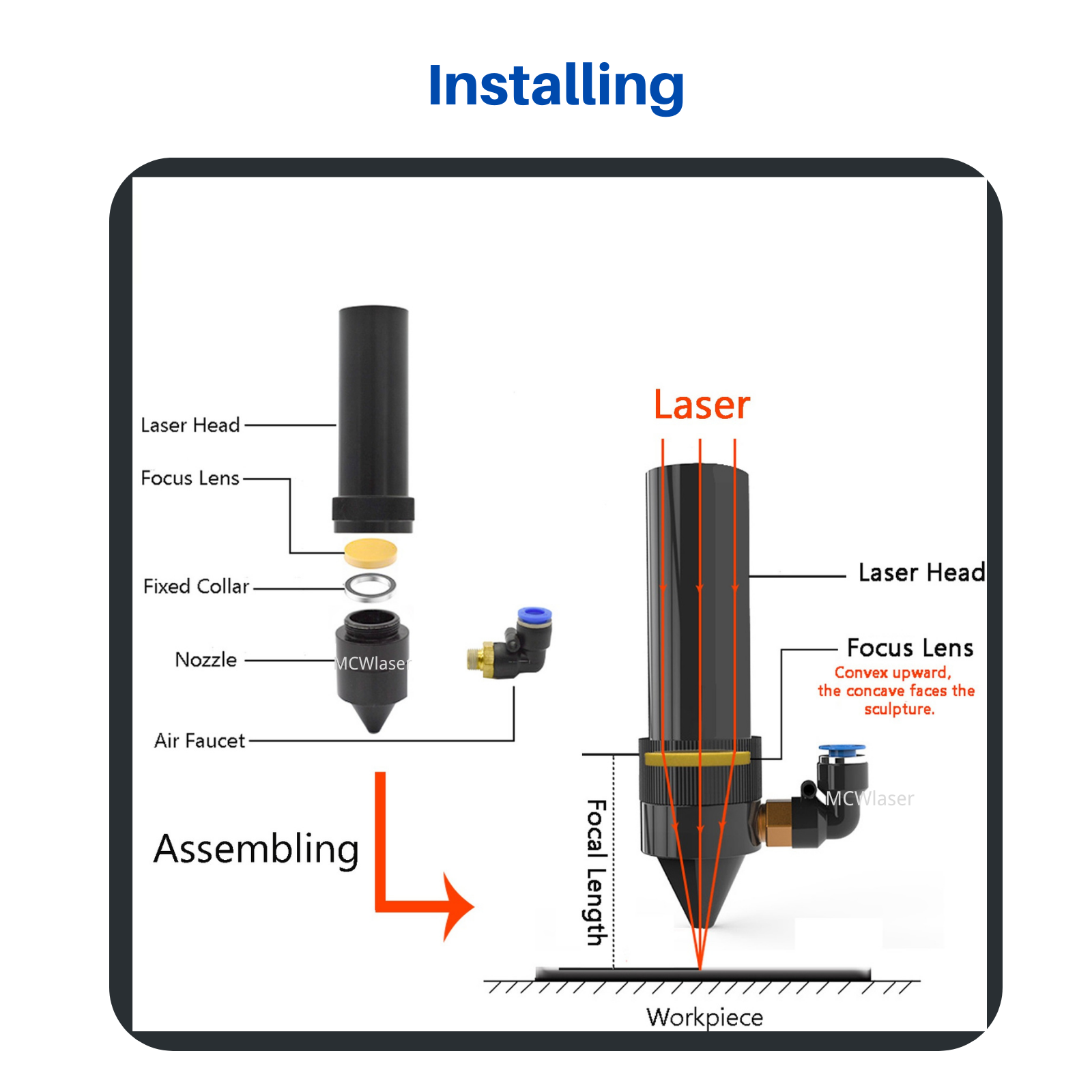

 It is recommended to use convex upward, flat, or concave facing the engraving or cutting material. Usually, one co2 laser engraver needs 1 pcs focus lens and 3 pcs reflective mirrors.

Application:

1.Which payment method we usually use?

a.Paypal and Paypal.me
b.Wire Transfer
c.Western Union


You may also pay directly via PayPal, we will send you the invoice /money request by Paypal directly, but we need to know your Paypal address firstly.
We can also accept the payment by  bank/wire transfer and west union if you want.


Shiping Method and Delivery Time:

1.Standard shipping / Economic transportation

2.Expedited Shipping  (by DHL/Fedex/UPS/TNT) ,door to door service.


3.The Ocean or Air transportation to sea or air port (door to door serive is optional)   can be provided.
The delivery time depend on the detail shipping address,please check the exact time and cost with us.

4 .Shipping From Overseas Warehouse:
USA Warehouse/3-5 Days
EU Warehouse/5-7 Days
AU Warehouse/3-5 Days


Customs Duty and VAT or Tax:

1).If your order was shipped from China,the pice doesn't include the import tariff duty,tax or VAT
The tariff duty,tax or VAT depend on local law and policy in difference country. The buyer need to cover the cost.
2).If your order was shipped locally,such as from US ,AU or Europe,the price includes the duty,tax or VAT. The buyer don't need to pay customs duty, tax or VAT.
3).Part of products in EU and US support PICK UP ON SITE.Please check with us about the detail if you need.

Q:If you can provide the invoice?
A: Yes,if you need the invoice,please contact with service@mcwlaser.com.
