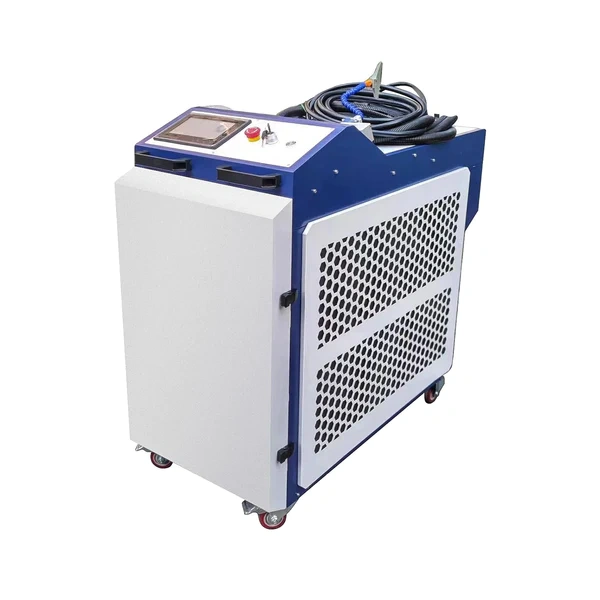

MCWlaser 3000W Laser Cleaning Machine Raycus Fiber Laser Rust Remover with 20m Cable for Rust Paint Coating Oil Stain Removal

Fiber Laser Cleaning Machines Features:

• Efficiency: Fiber laser rust removal is highly efficient and can remove rust quickly and effectively.
• Non-contact process: Fiber laser rust removal is a non-contact process, meaning that the laser does not physically touch the surface being treated. This reduces the risk of damage to the underlying material, making it suitable for delicate or sensitive surfaces.
• Precision: Fiber laser rust removal allows for precise control over the treatment area. The laser can be adjusted to target only the rusted areas without affecting the surrounding material.
• Automation: Fiber laser rust removal can be automated using robotic systems, making it ideal for industrial applications.
• Safety: Fiber laser rust removal is generally considered safe when performed by trained professionals. It produces minimal airborne debris, and the process can be carried out in a controlled environment to minimize any potential hazards. Traditional methods such as sandblasting or chemical rust removal may involve exposure to harmful dust, fumes, or chemicals, requiring appropriate safety measures.

Tech Parameters


Laser Source Power	3000W		Total Power	14KW
Voltage	AC380V±10%		Cable Length	Standard 10m, can be customized
Laser Type	Continuous/Modulation		Cooling Method	Water Cooling
Laser Wavelength	1080nm ± 10nm		Cooling Water Requirements	Purified or Distilled Water
Scanning Speed	0-7000 mm/s		Environment Humidity	≤70% No Condensation

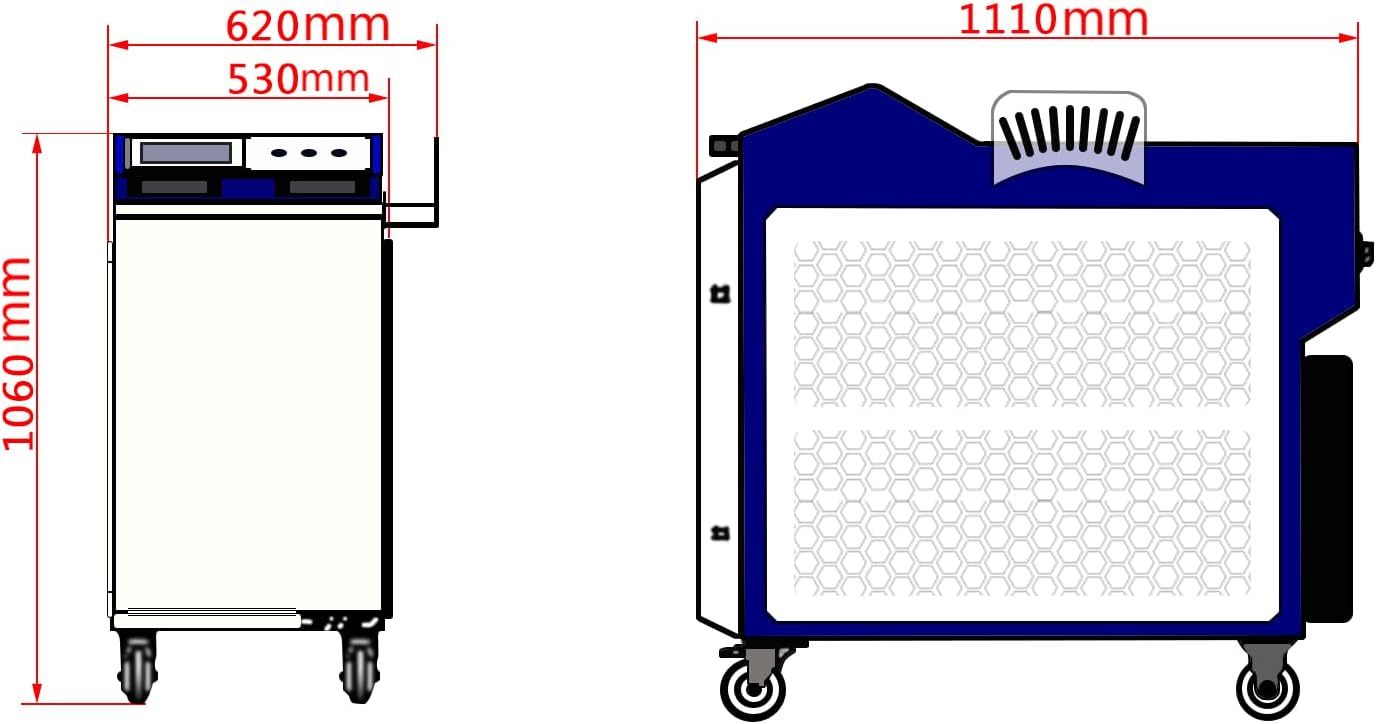

Scanning Width	10-300mm		Machine Dimension(mm)	1110*620*1060
Cleaning Efficiency	≤80m² /h		Machine Weight(kg)	230

Features

1.Powerful Cleaning Effects: The 3000W laser cleaning machine is mainly used to clean rust, oxide layer, paint coatings, oil stains on metal surface. It is the most efficient and effective way to clean rust and without damaging the underlying surface.
2.Non-contact & Fast Cleaning: The laser cleaner machine uses a focused beam of light to remove contaminants, without physically touching the surface being cleaned. Laser scan speed up 7m/s and cleaning speed up to 80m²/h .
3.Versatile: The rust removal machine can be used on a wide range of surfaces, not only metal, but also plastic, glass, and ceramics. It is a versatile tool for manufacturing, automotive, aerospace and more industrial.
Long Service Life & Low Maintenance: High quality laser source with 2 year replacement, built-in water cooling system and easy to operate makes it a very cost-effective option to maintain for many years without the need for major repairs.
4.Lifetime Technical Support and Customer Service: We provide online and remote technical support, phone support based on US. Please feel free to contact us if you have any issues about the laser cleaning machine.

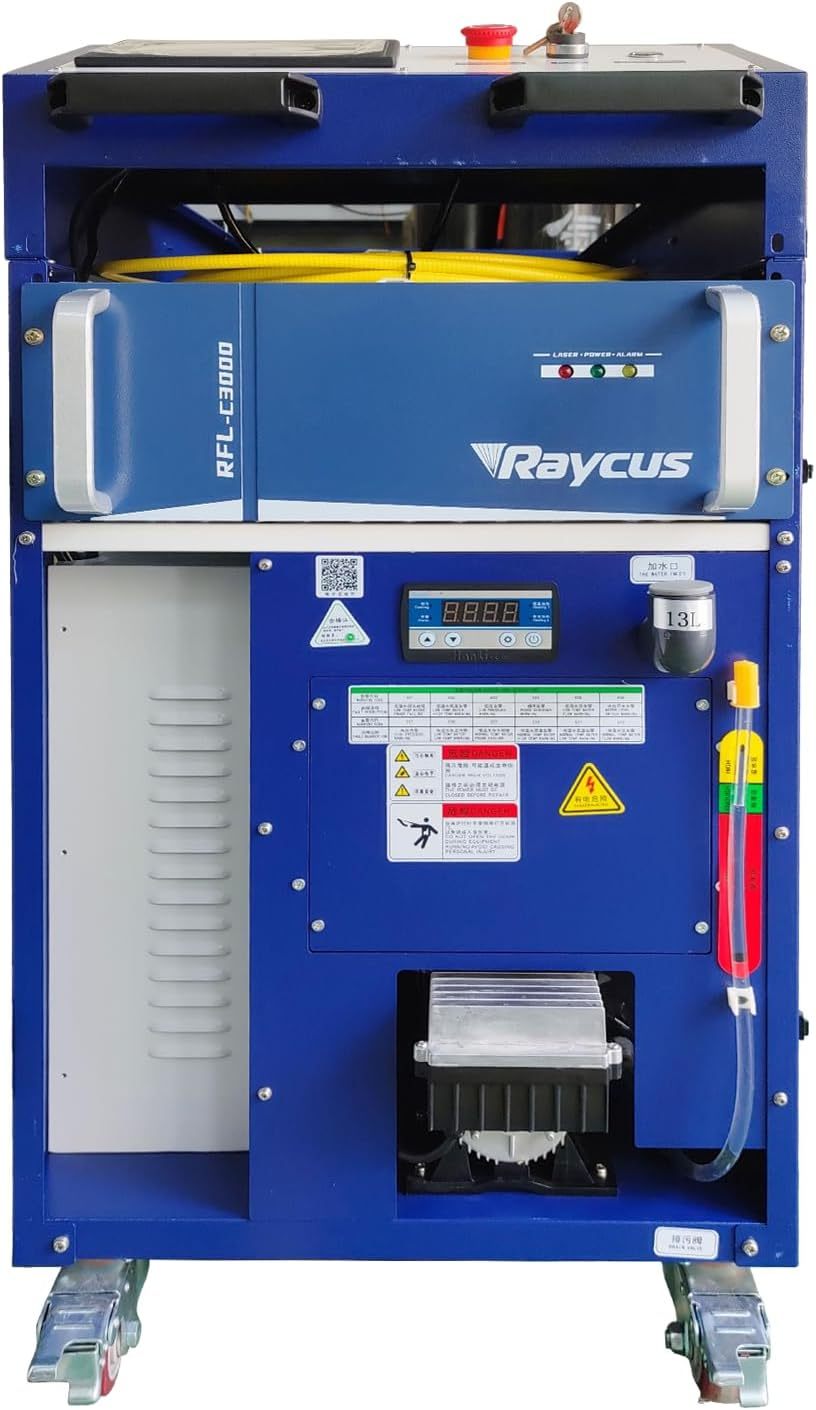

Raycus Laser Source



• High beam quality.
• High photoelectric conversion efficiency.
• Continuous working mode.
• Stable power and high peak power.

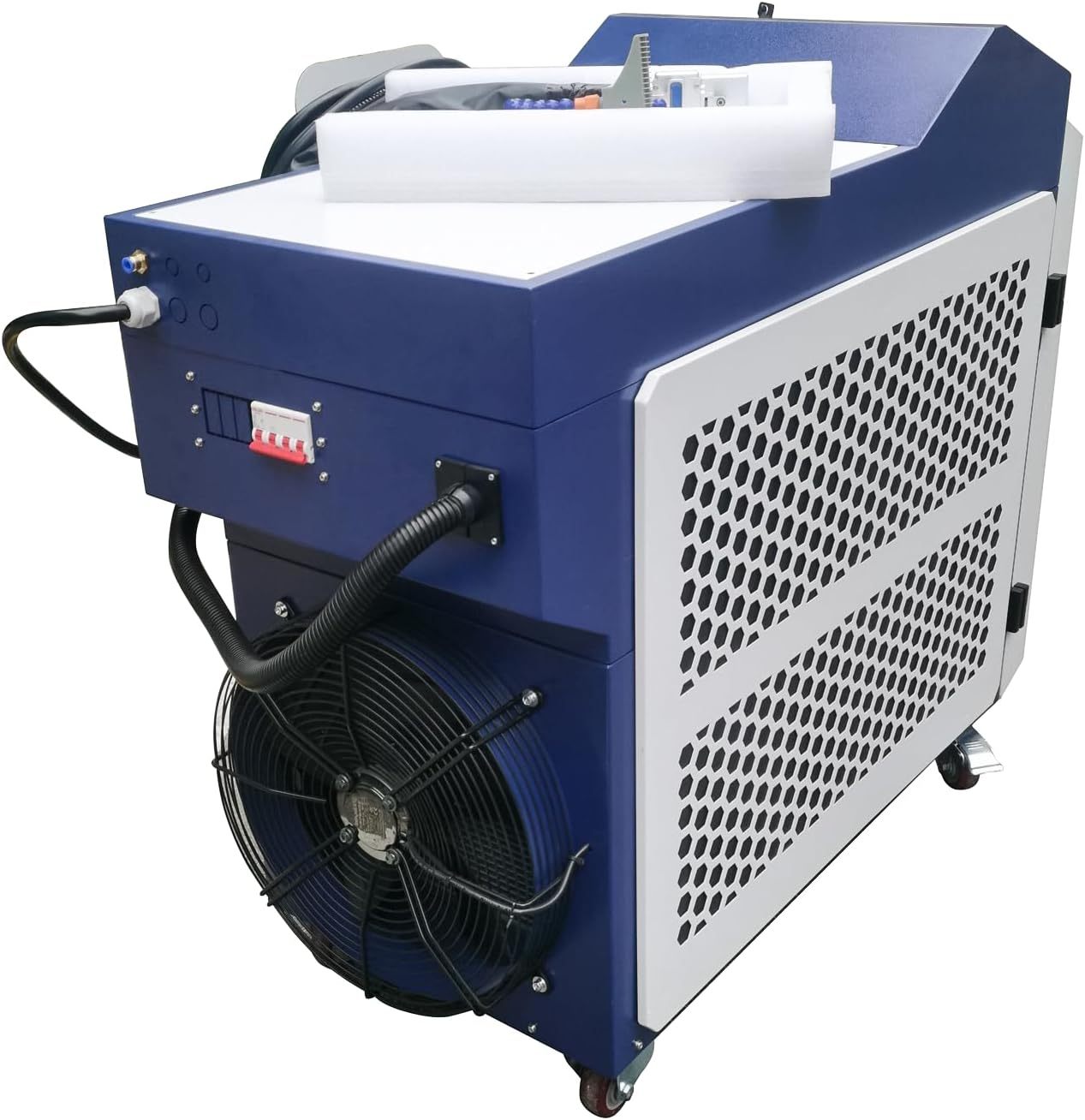

Branded Water Chiller



• Intelligent temperature control.
• Powerful cooling chiller.
• Large capacity water tank.

Durable Laser Head



• Ergonomic design
• Easy to use
• Non-contact Cleaning

Applications

The laser cleaning machine is mainly used to remove rust on the surface of metal materials, Paint stripping and Cleaning of components. The scope of application includes: metal surface rust removal, paint removal (full surface rust removal, paint removal or specified part rust removal, paint removal) and cleaning of various industrial products or molds. Using continuous fiber laser, powerful power but will not damage the object to be cleaned.
