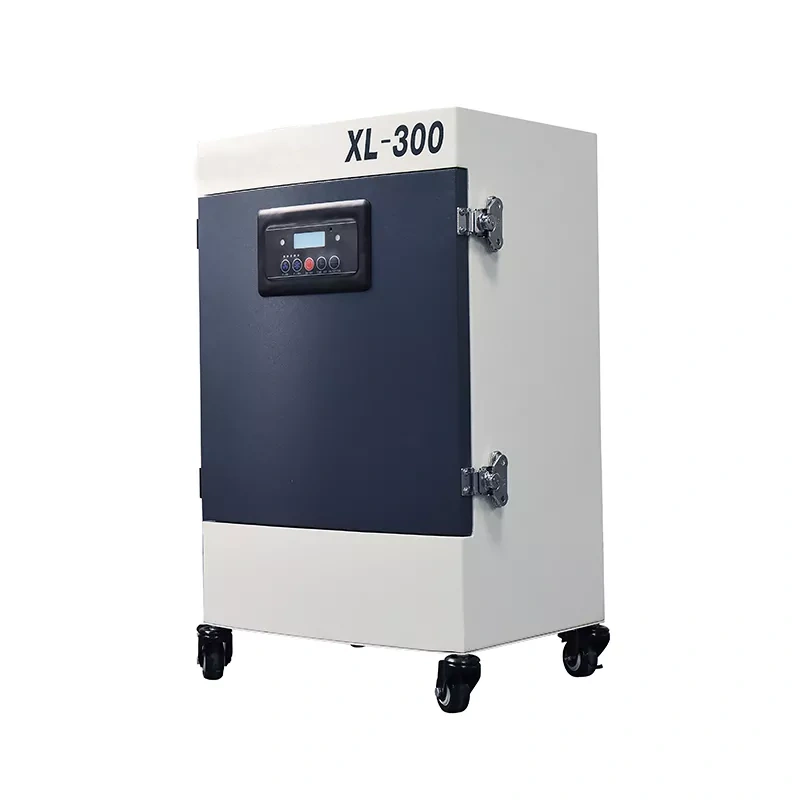

MCWlaser Smoke Purifier XL-300 Filter Fume Extraction System
PP : PP High-Efficiency Filter
T : Activated carbon filter
The Smoke Purifier XL-300 is an exceptional air purification system engineered to combat industrial-level smoke and airborne contaminants effectively. Tailored for heavy-duty performance, this device is crafted to remove and neutralize smoke particles, fumes, and hazardous gases commonly found in industrial settings. The XL-300 model boasts a potent air-cleaning capability, making it perfect for use in factories, manufacturing facilities, workshops, and other large-scale industrial applications. Its 4 Layers filtration system, including PP filters, and activated carbon filters, ensure thorough purification by capturing a diverse range of pollutants, promoting a healthier and safer working environment.
Modle | Certification |
XL-300 | CE |
Power | Warranty |
330W | 1 Year |
Efficiency | Filter |
99.97% | 4 Layers |
No-load speed(r/min) | Flow Rate(m³/h) |
6500 | 450 |
Load wind speed(m/s) | Negative pressure(Pa) |
21 | 2500 |
Weight(kg) | Noise(db) |
36.7 | <60 |
Dimensions(L*W*H) | Voltage |
425*315*700 | AC220V/AC110V |
Primarry filter |
450*380*100mm *1 |
PP High-Efficiency filter |
450*380*100mm *1 |
Activated carbon filter |
450*380*50mm*2 |

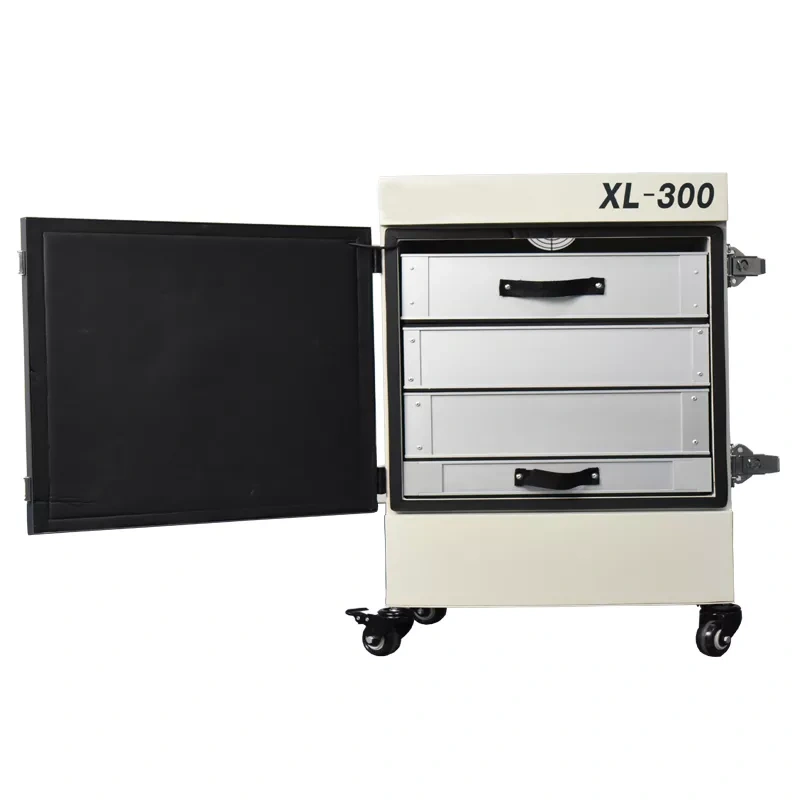

Cartridges are placed according to the standardconfiguration.
Note: Do not place the filter layer in a confusing position, but followthe direction of the arrow on the filter layer! Do not touch the inner faninlet with your hands!
Applied for controlling dust, smoke, and harmful particles generated by soldering, laser work, and dust production.
Soldering
During the soldering process, a lot of fumes are generated. The particles in the smoke and harmful gases will cause great harm to the operator and the environment.
Laser
Suitable for laser marking machines. The smoke produced by laser includes inhalable powder, methanol methyl acrylate, ethyl phenyl acrylate copolymer and other volatile matter that is pungent odor.
For specific applicable machines, please consult customer service.
Dust Powder
In many industries. dust and powder substances are involved.The production of these substances will cause inconvenience and serious impacts
Our products are suitable for various machines and industries, including laser marking machines, and can effectively remove inhalable powder, methanol methyl acrylate, ethyl phenyl acrylate copolymer, and other volatile matter.
For more information on our products and how they can be applied to your specific machines and industries, please consult our customer service team. With our solutions, you can ensure a safer and healthier working environment for both operators and the environment.
